o ring assembly automation – semi automatic universal rubber o ring fitting machine
Brand: glt
Country of origin: China
Technical Support: Longlife
Application: nozzles,connector,sprayer,valve,pump,lances,filter,filtration,fittings,irrigation,adapters,automation
Universal semi automatic o ring assembly machine. Semi automatic o ring assembly machine with hand-string feeding.
High efficiency: ≥1000 rings/hour, faster than manual assembly.
Simple operation: hand-string feeding and touch screen one-key start, PLC control.
Universal type: fits O-ring inner diameter 6-40mm, one extra tool per size.
Stable drive: servo motor and cylinder for smooth, precise assembly.
Compact & light: 30KG benchtop design, easy to place and move.
o ring assembly automation
semi automatic o ring machine
universal o ring machine
semi automatic rubber o ring machine
universal o ring fitting machine
Semi automatic o ring machine.

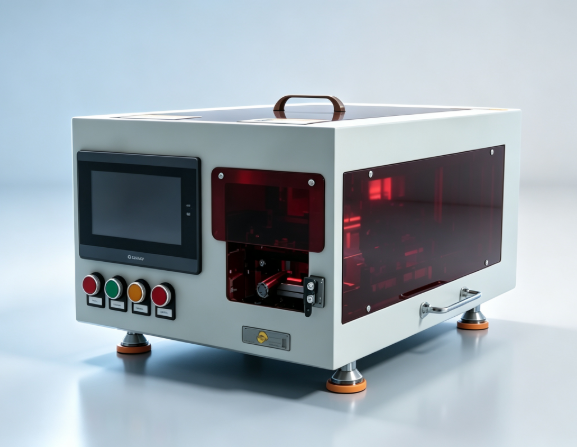

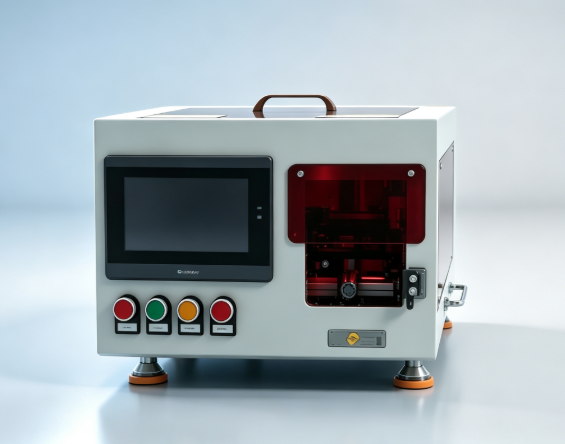

a. The O-Ring Installer is a benchtop semi-automatic universal O-ring assembly machine with a hand-string structure, mainly composed of a sheet metal shell, a hand-string O-ring feeding and ring rod system, a positioning fixture, a servo motor and cylinder drive unit, and a PLC electrical control system. The compact 30KG benchtop frame and small footprint (420mm x 550mm x 320mm) allow easy integration into assembly production lines.
b. Using integrated touch screen PLC control, operators can set device parameters, view finished product quantity, locate fault points, and access troubleshooting methods. The simple, intuitive screen interface makes daily use and maintenance convenient.
c. The equipment ships with an instruction manual, and customer personnel receive training in its use and maintenance.
Advantages:

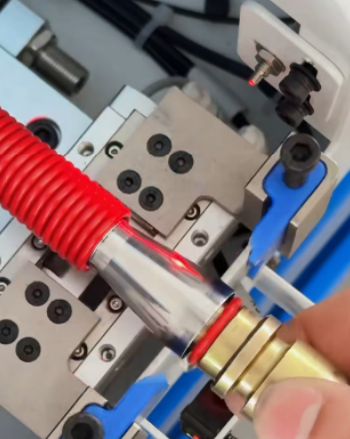

1The semi-automatic universal O-ring assembly machine can be applied to O-rings of different sizes and materials, as well as various part types. By replacing different fixtures and tools, the hand-string installation system meets the assembly needs of different products — different inner diameter O-rings from 6-40mm require corresponding extra tools, ensuring smooth O-ring installation on the part.
2The semi-automatic universal O-ring assembly equipment significantly improves production efficiency while reducing operator labor intensity. Operators only need to perform simple operations such as threading O-rings onto the ring rod and starting the equipment, and the hand-string O-ring automatic assembly machine can automatically complete most of the assembly work, achieving ≥1000 rings/hour with stable servo motor and cylinder drive.
Application:
automotive, compressor, CPU liquid cooler,Evaporator,fliter,hydraulic,sanitary,sprayer
Main Features:
Semi Automatic Universal Rubber O Ring Assembly Machine
1.Pneumatic and drive system.
a. The machine uses a servo motor and cylinder as the working power carrier, with stable air pressure at 0.4~0.6MPa, providing reliable power for the hand-string feeding action of this semi automatic o ring assembly machine.
b. The gas source is equipped with pressure stabilization, gas-water separation, and impurity filtration treatment devices to ensure the dryness and purity of the compressed air.
2.Electric control system.
a. Adopting PLC control and touch screen display, the electrical part complies with relevant national safety standards; operators can set parameters and monitor o ring assembly automation status in real time.
b. The main power switch, relays, buttons, etc. are made of high-quality brands, and the sensors are imported brands, ensuring reliable feedback for the hand-string O-ring feeding and assembly cycle.
c. Standard terminal blocks are used for electrical wiring and are accurately labeled.
3.Technical indicators.
a. Feeding method: hand-string structure, O-rings manually threaded onto the ring rod one by one, then placed in the fixed position for automatic assembly.
b. Control mode: PLC control and touch screen all-in-one machine.
c. Factory humidity: ≤95%; Factory temperature: 3-40℃.
d. Compressed air pressure: 0.4-0.6MPa.
e. Power supply parameters: AC220V, 600W.
f. Production capacity: approximately 1000 pieces/hour.
g. Machine size: 420mm x 550mm x 320mm, 30KG.
Our semi automatic universal rubber o ring assembly machine is widely used in different applications, for example, nozzles, connectors, sprayers, valves, pumps, lances, filters, filtration fittings, irrigation, adapters, and automation. It handles gasket ring installation, gasket ring assembling, seals installation, seals assembling, including external o-ring installation and internal o ring installation. As a versatile universal o ring machine, it supports both full automatic o-ring assembly machine and semi-automatic o-ring assembly machine modes, making o ring assembly automation accessible for various production scales.
Specifications:
| Machine name | Semi Automatic O-ring assembly machine Universal type |
| Item code | OR05 |
| Input Voltage | AC220V 600W |
| Production capacity | ＞1000 pieces/hour |
| Air pressure | 0.4-0.6MP |
| Machine size | 42 x 55 x 32 cm |
| Machine weight | 30KGS |
| Package | Wooden box |
