Semi automatic o ring assembly machine.

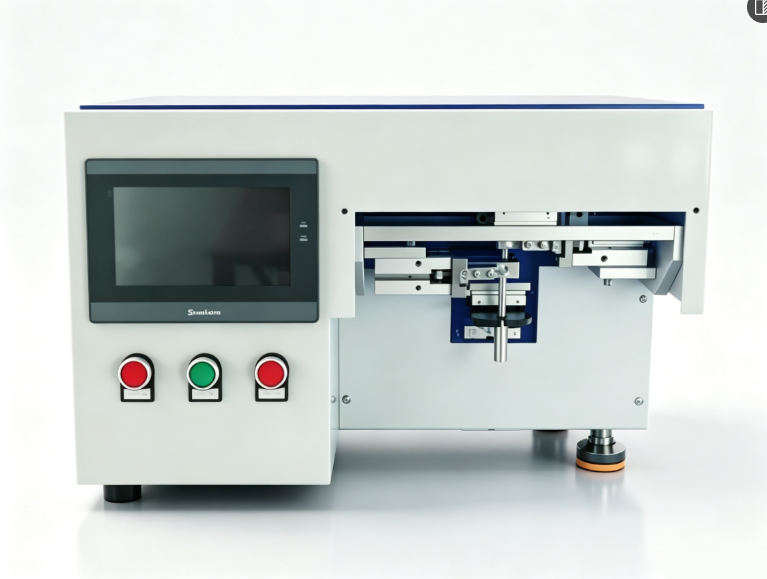

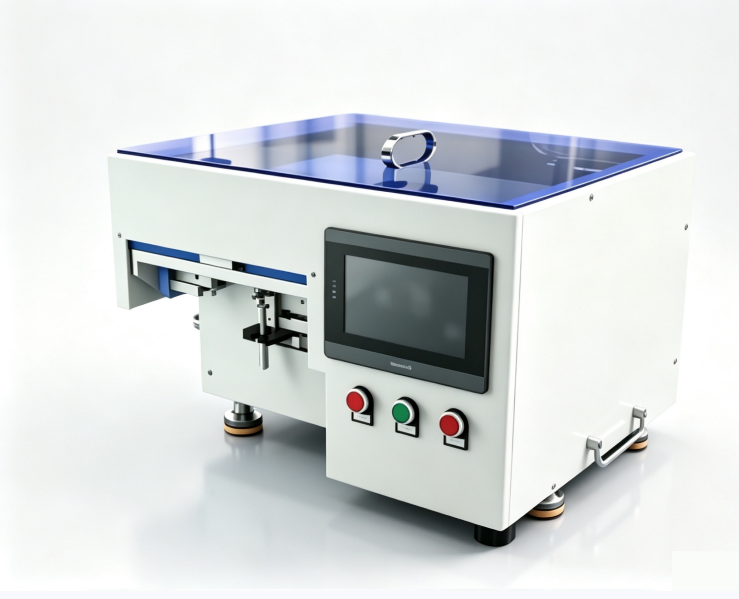

a. The O-ring installer is a benchtop semi automatic o ring assembly machine designed with a pull-down mechanism, mainly composed of a sheet metal shell, a pull-down O-ring feeding system, an O-ring expansion mechanism, a lubricating oil filling/injection system, and an electrical control system. The vertical down-stroke action reduces operator fatigue, while the strong, compact frame allows easy integration into assembly production lines.

b. Using integrated touch screen control, operators can set device parameters, view finished product quantity, locate fault points, and access troubleshooting methods. The simple, intuitive screen interface makes daily use and maintenance convenient.

c. The equipment ships with an instruction manual, and customer personnel receive training in its use and maintenance.

Advantages:

1.The semi automatic o ring installation machine can be applied to O-rings of different sizes and materials, as well as various part types. By replacing different fixtures and molds, the automatic rubber o ring installation assembly machine meets the assembly needs of different products – different diameter O-rings require corresponding expansion fixtures, and parts of different shapes use adjustable positioning molds to ensure smooth O-ring installation on the part.

2.The rubber o ring mounting machine significantly improves production efficiency while reducing operator labor intensity. Operators only need to perform simple operations such as placing workpieces and starting the equipment, and the o ring insertion machine can automatically complete most of the assembly work through its vertical down-stroke action.

Application:

automotive, compressor, CPU liquid cooler,Evaporator,fliter,hydraulic,sanitary,sprayer

Main Features:

O ring insertion machine .

Automatic Rubber O Ring Installation Assembly Machine

1. Pneumatic system.

a. The main pneumatic components such as cylinders, solenoid valves, air filters, etc. are made by Taiwan's Yadeke brand, providing stable power for the vertical down-stroke action of this semi automatic o ring installation machine.

b. The gas source is equipped with pressure stabilization, gas-water separation, and impurity filtration treatment devices to ensure the dryness and purity of the compressed air used by this semi automatic o ring assembly machine.

2. Electric control system.

a. Adopting touch screen integrated machine control, the electrical part complies with relevant national safety standards, operators can set parameters and monitor ring assembly automation status of the o ring insertion machine in real time.

 b. The main power switch, relays, buttons, etc. are made of high-quality brands, and the sensors are imported brands, ensuring reliable feedback for the pull-down O-ring feeding and installation cycle of the automatic rubber o ring installation assembly machine.

c. Standard terminal blocks are used for electrical wiring and are accurately labeled.

3. Technical indicators.

a. Feeding method: The sealing ring is fed by a vibrating disc, and the pull-down feeding system delivers O-rings to the installation position of the rubber o ring mounting machine.

b. Control mode: Touch screen all-in-one machine with MCGS real-time output display.

c. Factory humidity: ≤95%; Factory temperature: 3-40℃. d. Compressed air pressure: 0.5MPa.

e. Power supply parameters: AC220V ±15%, frequency 50Hz ±2%.

f. Production capacity: approximately 1000 pieces/hour (1 second per ring).

 g. Machine size: L550mm×W350mm×H600mm, 60Kgs.

Our automatic rubber o ring installation assembly machine is widely used in different applications, for example, nozzles, connectors, sprayers, valves, pumps, lances, filters, filtration fittings, irrigation, adapters, and automation. It handles gasket ring installation, gasket ring assembling, seals installation, seals assembling, including external o-ring installation and internal o ring installation. As a versatile rubber o ring mounting machine, it supports both full automatic o-ring assembly machine and semi-automatic o-ring assembly machine modes, making o ring assembly automation accessible for various production scales.
