Fully Automatic Hose Assembly Machine
Brand: Benfa
Country of origin: China
Technical Support: Longlife
Application: steel wire braided high pressure rubber tube ,steel wire braided sleeve , braided corrugated tube , high strength wire braided tube. Big diameter cable brake hose ,air conditioner hose
Greenland Benfa technology Fully Automatic Hose Assembly Machine
1) Fully automatic from cutting to testing - no operators required.
2)One integrated line covers automatic cutting, sleeve feeding, joint feeding, assembly, crimping and air tightness testing.
3)Automatic hose feeding with vibratory bowl feeding of steel sleeves.
4)Automatic feeding for nuts and cores.
5)High-precision crimping system with excellent clamping accuracy and long-term stability.
6)100% air tightness testing on every finished hose for guaranteed quality.
7)High output: up to 1,000 pieces per hour.
Download
Greenland Benfa technology Fully Automatic Hose Assembly Machine
Product Overview

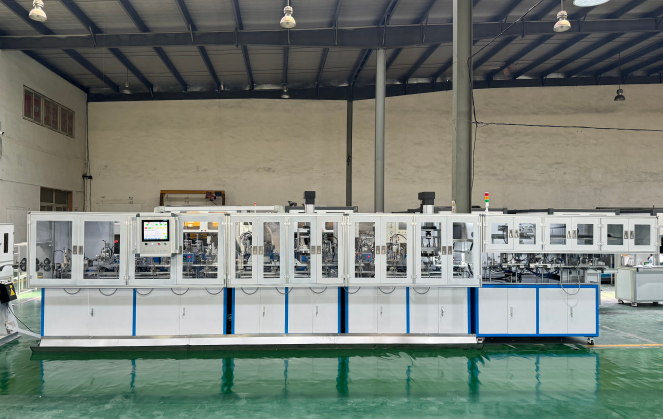

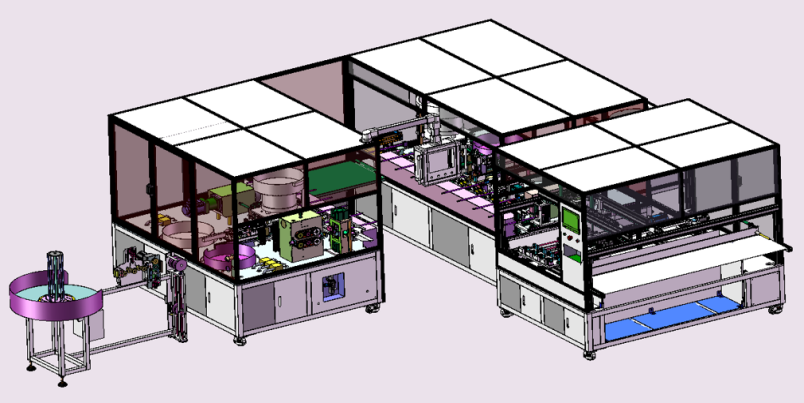

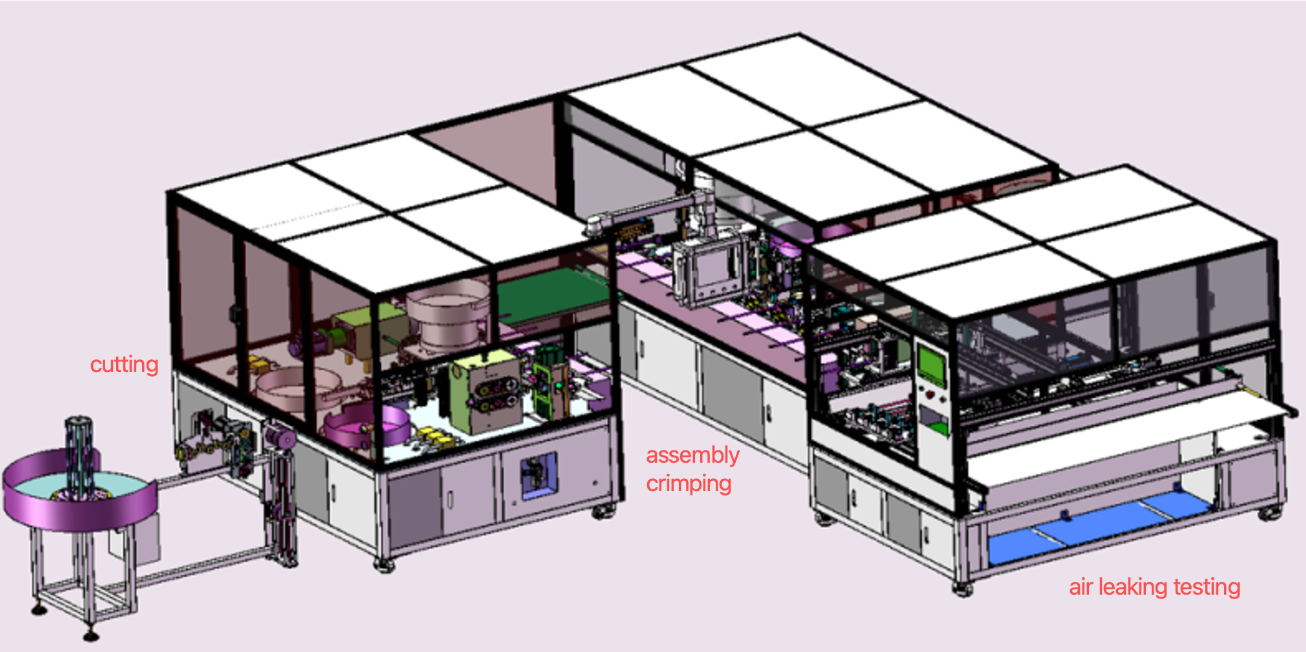

The fully automatic hose assembly machine is a turn-key production line that takes a bare hose from cutting all the way to a tested, ready-to-ship assembly - with no operator involvement at any stage. It combines four processes on a single line: hose cutting, fitting and sleeve assembly, crimping, and air tightness testing, delivering a finished hose assembly every 3.6 seconds for an output of up to 1,000 pieces per hour.
Hoses are fed automatically, while steel sleeves, joints, nuts and cores are supplied by vibratory bowl feeders. The high-precision crimping system guarantees consistent, stable clamp accuracy on every piece, and 100% of finished hoses pass through a built-in air tightness test before leaving the line - so every assembly that reaches your customer is leak-proof by design, not by sampling inspection.
Main feature:
Fully automatic from cutting to testing - no operators required

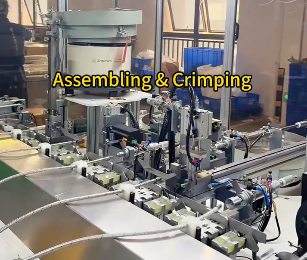

One integrated line covers automatic cutting, sleeve feeding, joint feeding, assembly, crimping and air tightness testing
Automatic hose feeding with vibratory bowl feeding of steel sleeves
Automatic feeding for nuts and cores
High-precision crimping system with excellent clamping accuracy and long-term stability

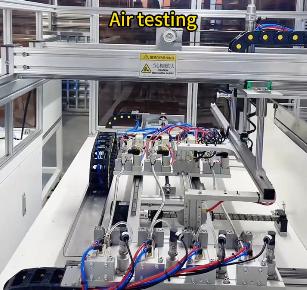

100% air tightness testing on every finished hose for guaranteed quality
High output: up to 1,000 pieces per hour
Specifications:
Greenland Benfa technology Fully Automatic Hose Assembly Machine
Fully Automatic Hose Assembly Machine,Hydraulic Hose Assembly Line,Automatic Hose Crimping Machine,Hose Air Tightness Tester,Vibratory Bowl Feeder.
Item | Specification |
Motor Power | 3-5 kW |
Voltage | AC 220V, 50 Hz |
Air Pressure | 0.5-0.6 MPa |
Work Efficiency | 1,000 pcs/hour |
Floor Area | 3.5 m x 7 m |
Applicable Hose Length | 250-1,500 mm (same diameter per run, tolerance +1 mm) |
Configuration Options
The standard configuration is designed for FF + FM x 3 fittings. Additional working stations can be added to handle extra M fittings, allowing the line to be tailored to your product mix and future capacity growth.
Industry
Construction & earthmoving、Automotive & motorcycle、Agricultural machinery、Oil, gas & marine、Industrial fluid & pneumatic transfer、HVAC & refrigeration
